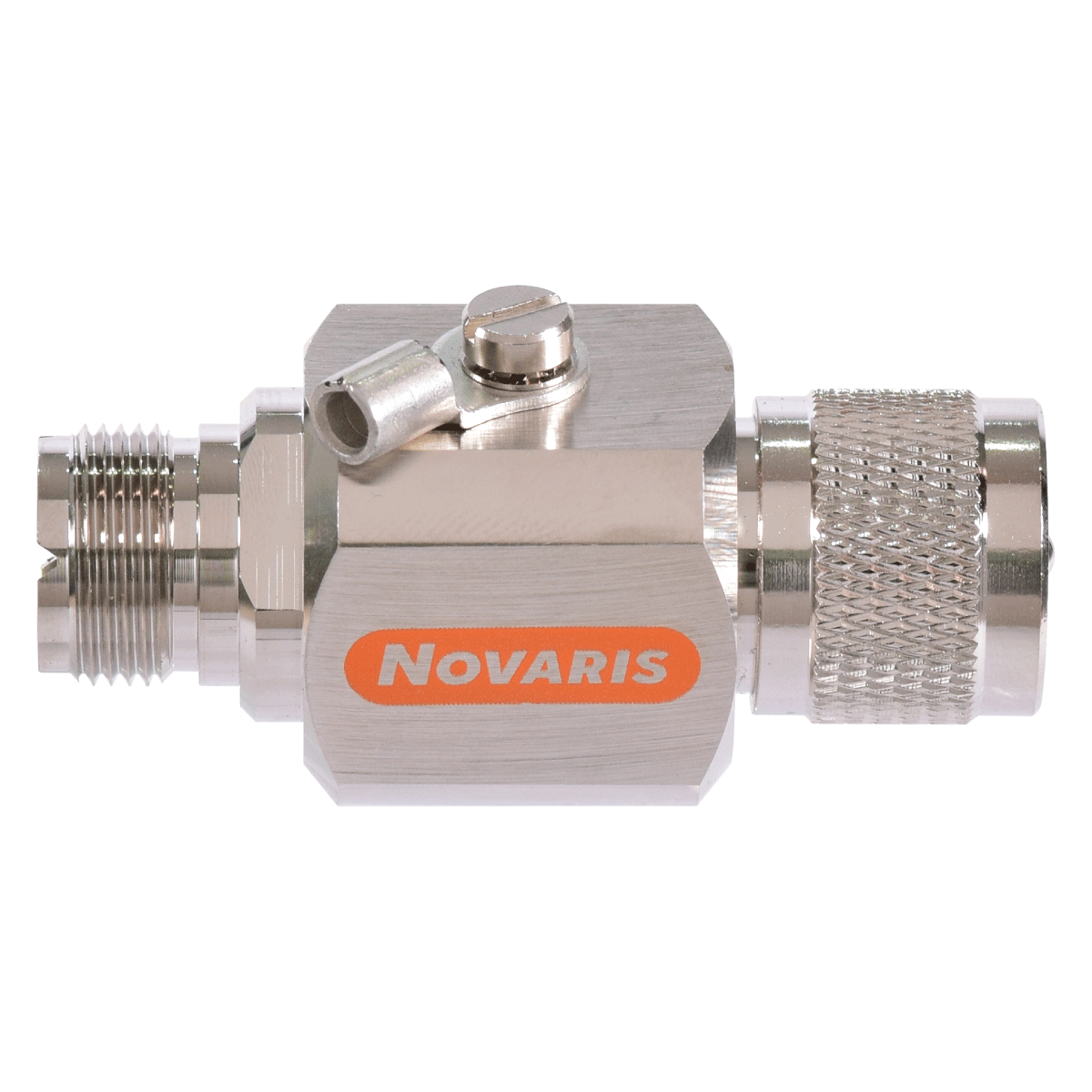

UHF RF Protectors

Coaxial UHF type (PL-259) to 1GHz

Novaris CU UHF RF Protectors are suited for RF signals at frequencies up to 1GHz.

  • Replaceable GDT
  • DIN rail mounting (-D)
  • Earth stud (-E)
  • Low VSWR (<1.1:1)
  • 90 mounting (-M)
  • G rail mounting (-G)

Application Notes Download

SpecificationsCU-MF-90-3CU-FF-90-3CU-MF-230-3CU-FF-230-3CU-MF-350-3CU-FF-350-3CU-MF-600-3CU-FF-600-3CU-MF-1000-3CU-FF-1000-3
Spark-over voltageU꜀90V230V350V600V1000V
Maximum discharge current (8/20μs)Iₘₐₓ20kA
Maximum impulse current (10/350μs)Iᵢₘₚ5kA
Impulse durabilityC2 8/20μs 5kA
Power rating25W150W350W1000W2500W
Voltage protection level @ 1kV/μsUₚ650V820V1.1kV1.3kV1.8kV
VSWR< 1.1 : 1
Connector orientationM / FF / FM / FF / FM / FF / FM / FF / FM / FF / F
Dimensions📐W 61mm x H 25mm x D 25mm
Weight📦120g100g120g100g120g100g120g100g120g100g
Product DatasheetPDFCU-MF-90-3CU-FF-90-3CU-MF-230-3CU-FF-230-3CU-MF-350-3CU-FF-350-3CU-MF-600-3CU-FF-600-3CU-MF-1000-3CU-FF-1000-3
Application Note
