Ten Amp Series Surge Protectors

Signal | Process Control | Input / Output / Power
Product Line : SSP10A

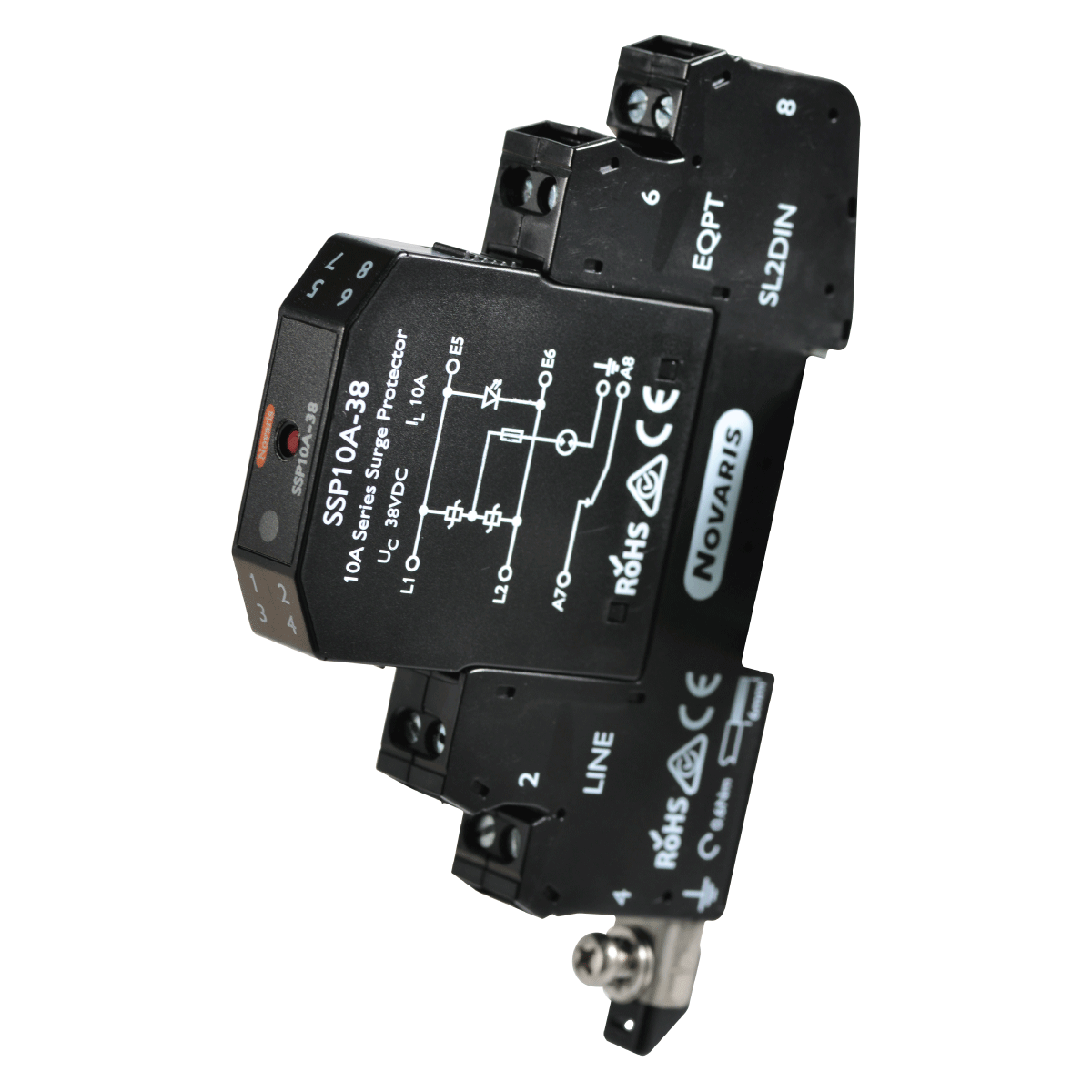

Ten Amp Series Surge Protectors

For DC and AC power up to 10A, no follow current

Novaris SSP10A series surge protectors complement the SL2/4 range for applications with load currents up to 10A. These may include power supplies, digital outputs and other low voltage systems. This product is free from AC follow on current under all conditions and may safely be used to protect battery backed power supplies.

  • 10A load current each circuit
  • Visual health indicator
  • Replaceable cartridge
  • 12mm width
  • No follow on current
  • Zero earth leakage

Application Notes Download

SpecificationsSSP10A-14SSP10A-26SSP10A-38SSP10A-65SSP10A-130SSP10A-170
Maximum continuous voltage (DC)U꜀14V26V38V65V130V170V
Maximum continuous voltage (AC)U꜀11V20V30V50V110V150V
Maximum discharge current (8/20μs)Iₘₐₓ10kA per line (20kA common mode)
Impulse durabilityC2 8/20µs 10kA
Maximum load current

IL

10A10A10A10A10A10A
L-L Voltage protection level @ 1 kV/μsUₚ45V65V110V135V240V290V
L-PE Voltage protection level @ 1 kV/μsUₚ560V560V560V560V560V560V
Line resistance0.02 Ω0.02 Ω0.02 Ω0.02 Ω0.02 Ω0.02 Ω
Dimensions📐W 12mm X H 110mm X D71mm
Weight📦70g
Product DatasheetPDFSSP10A-14SSP10A-26SSP10A-38SSP10A-65SSP10A-130SSP10A-170
Application Note
