Telephone Line Protectors

Signal | Network and CCTV
Product Line : MPP

Telephone Line Protectors

For copper telephone line protection

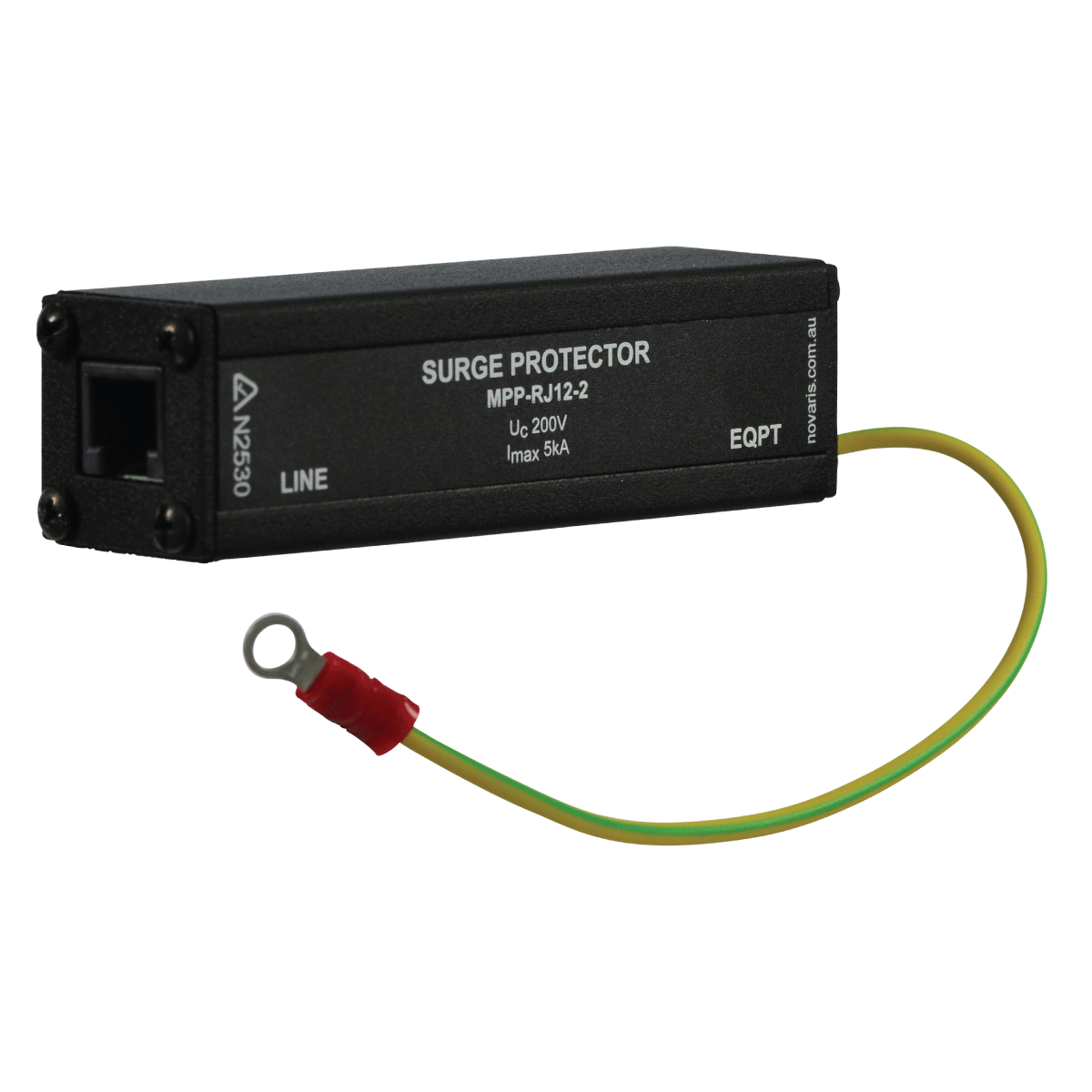

Novaris Modular Plug Protectors are designed for twisted pair telecommunication services suitable for telephones, FAX, dial-up, ISDN and xDSL modems.

  • Metal enclosure
  • Multistage protection

Application Notes Download

SpecificationsMPP-RJ12-1MPP-RJ12-2MPP-RJ45MPP-VDSL
Number of pairs1221
Maximum continuous voltage (DC)U꜀200V200V200V230V
Maximum continuous voltage (AC)U꜀140V140V140V162V
Maximum discharge current (8/20μs)Iₘₐₓ10kA per line (10kA common mode)5kA per line (10kA common mode)
Maximum impulse current (10/350μs)Iᵢₘₚ1.2 kA per line (2.5kA common mode)
Impulse durabilityC2 8/20μs 5kA
Maximum load current

IL

350mA350mA350mA1A
L-L Voltage protection level @ 1 kV/μsUₚ150V150V150V950V
L-PE Voltage protection level @ 1 kV/μsUₚ350V350V350V770V
Line resistance8.2 Ω8.2 Ω8.2 Ω0.1 Ω
Dimensions📐W 26mm x H 26mm x D 95mmW 27mm x H 80mm x D 28mm
Weight📦100g100g100g200g
Product DatasheetPDFMPP-RJ12-1MPP-RJ12-2MPP-RJ45MPP-VDSL
Application Note
