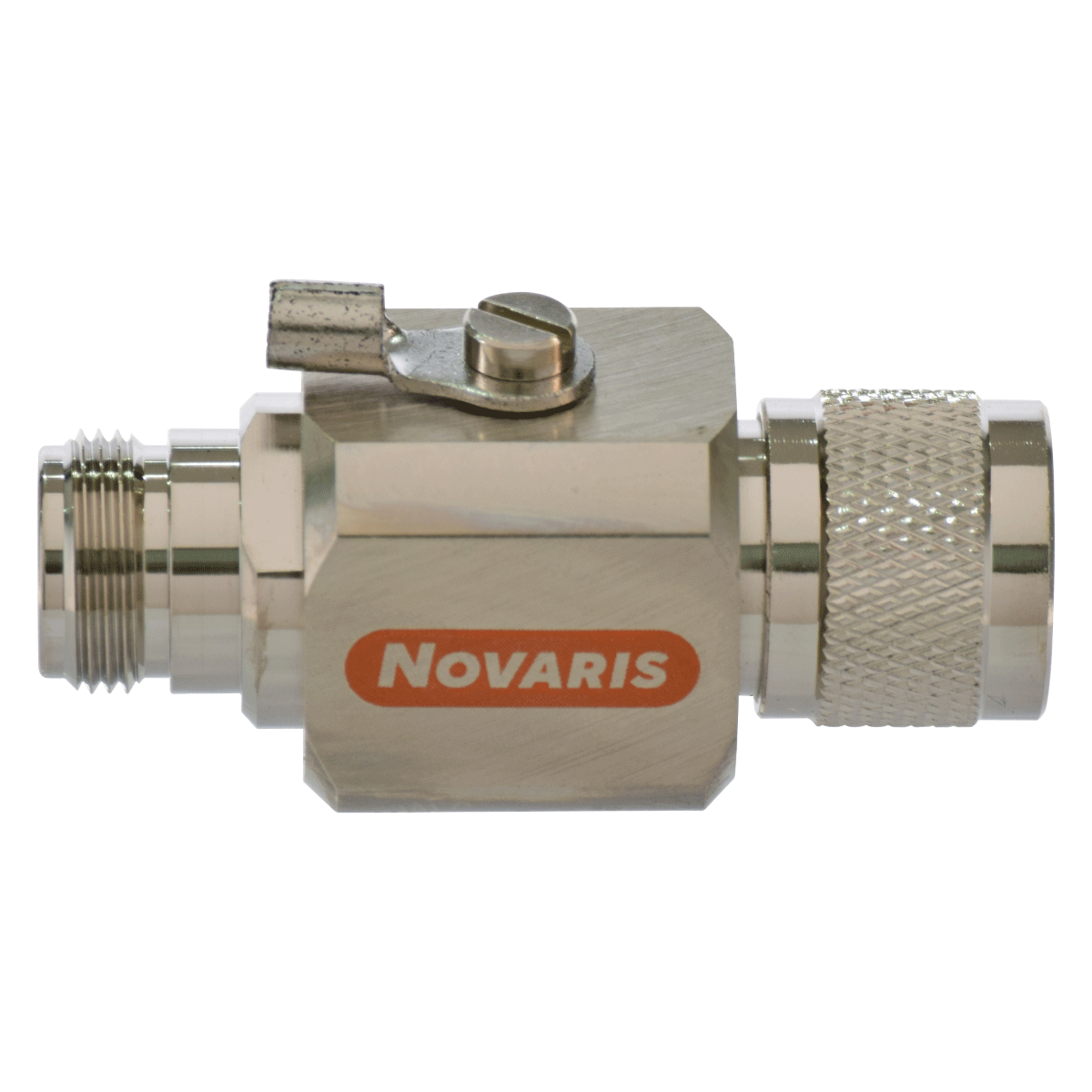

N-Type RF Protectors

Product Line : CN-3

Coaxial N type to 3GHz

Novaris CN N-Type RF Protectors are suited for RF signals at frequencies up to 3GHz. N Type protectors are bulk head mountable.

Application Notes Download


Specifications		CN-MF-90-3	CN-FF-90-3	CN-MF-230-3	CN-FF-230-3	CN-MF-350-3	CN-FF-350-3	CN-MF-600-3	CN-FF-600-3	CN-MF-1000-3	CN-FF-1000-3
Spark-over voltage	U꜀	90 V			230 V			350 V			600 V	1000 V
Maximum discharge current (8/20μs)	Iₘₐₓ	20 kA
Maximum impulse current (10/350μs)	Iᵢₘₚ	5kA
Impulse durability		C2 8/20μs 5 kA
Power rating		25W			150W			350W			1000W	2500W
Voltage protection level @ 1kV/μs	Uₚ	650 V			820 V			1.1 kV			1.3 kV	1.8 kV
VSWR		< 1.1 : 1
Connector orientation		M / F	F / F	M / F	F / F	M / F	F / F	M / F	F / F	M / F	F / F
Dimensions	📐	W 60mm x H 25mm x D 25mm
Weight	📦	135g
