High Current Isolating Spark Gap

Signal | Earth Clamps
Product Line : IS-EC100

High Current Isolating Spark Gap

Isolating spark gap Ex d 100kA

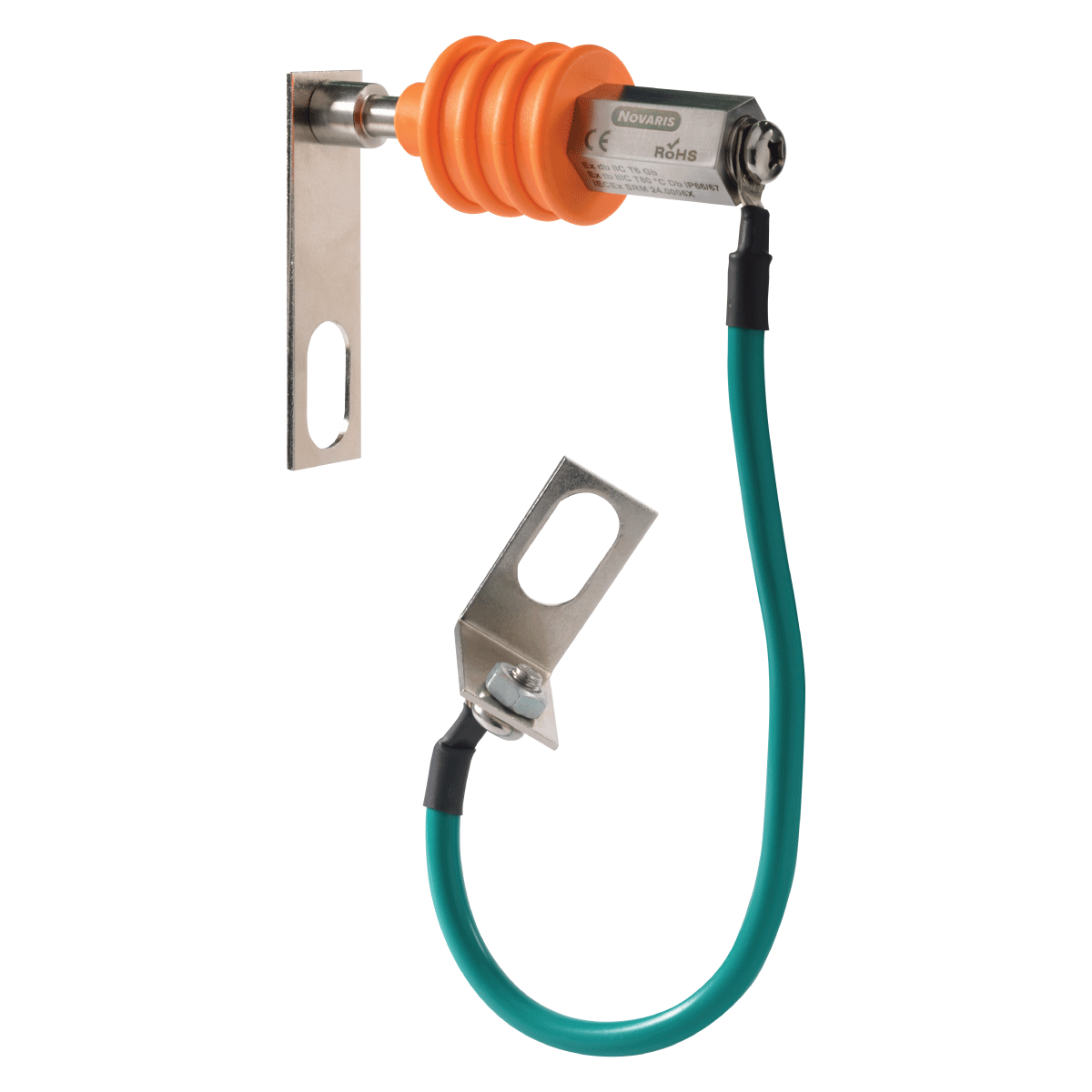

The Novaris IS-EC100-230 is a high current isolating spark gap that is used to bond conductive parts that cannot be directly bonded together within hazardous areas.

  • Ex db IIC T6 Gb certified
  • IP65 enclosure
  • 100kA surge rating
  • Flying lead connections

Application Notes Download

SpecificationsIS-EC100-230
Maximum continuous voltage (AC)U꜀230V
Maximum impulse current (10/350μs)Iᵢₘₚ100kA
AC Sparkover Voltage400V
Voltage protection level @ 1 kV/μsUₚ1.5kV
Environmental ratingIP65
Dimensions📐 L 110mm x Ø 40mm
Weight📦315g
Product DatasheetPDFIS-EC100-230
Application Note
