Product Line : GDT-100

GDT-100

GDT for high exposure track circuits

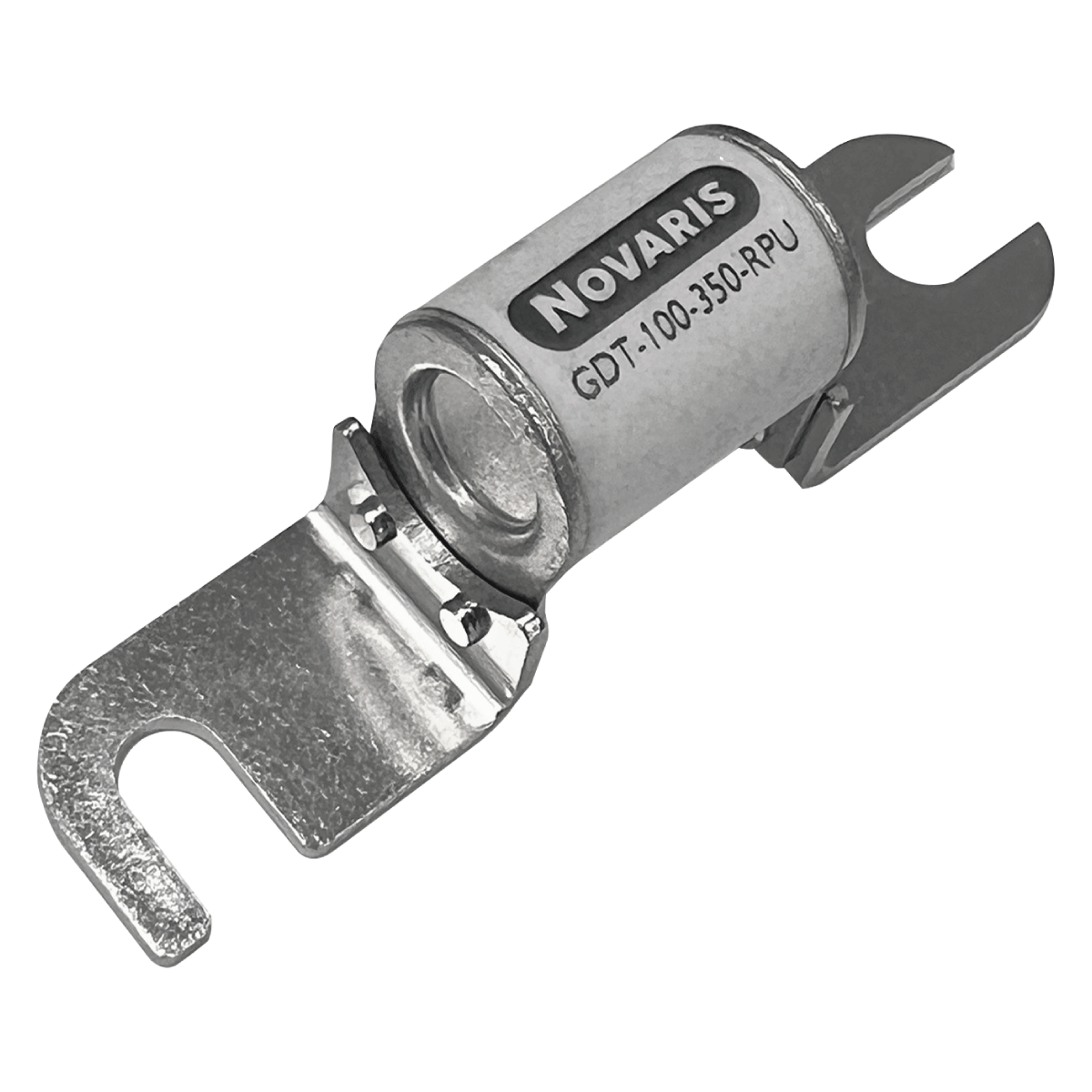

The Novaris GDT-100-350-RPU is a high energy fast acting gas discharge tube used in railway track circuit surge protectors. This components is a replacement for early technology air gap and MOV components.

  • Early technology replacement
  • 150kA surge rating

Application Notes Download

SpecificationsGDT-100-350-RPU
DC spark over voltageU꜀350V
Maximum discharge current (8/20μs)Iₘₐₓ150kA
Impulse discharge current (10/350ms)Iᵢₘₚ30kA
Active elements Gas discharge tube
Voltage tolerance±20%
L-PE Voltage protection level @ 1kV/μsUₚ800V
Dimensions📐W 72mm X H 16mm X D 25mm
Weight📦25g
Product DatasheetPDFGDT-100-350-RPU
