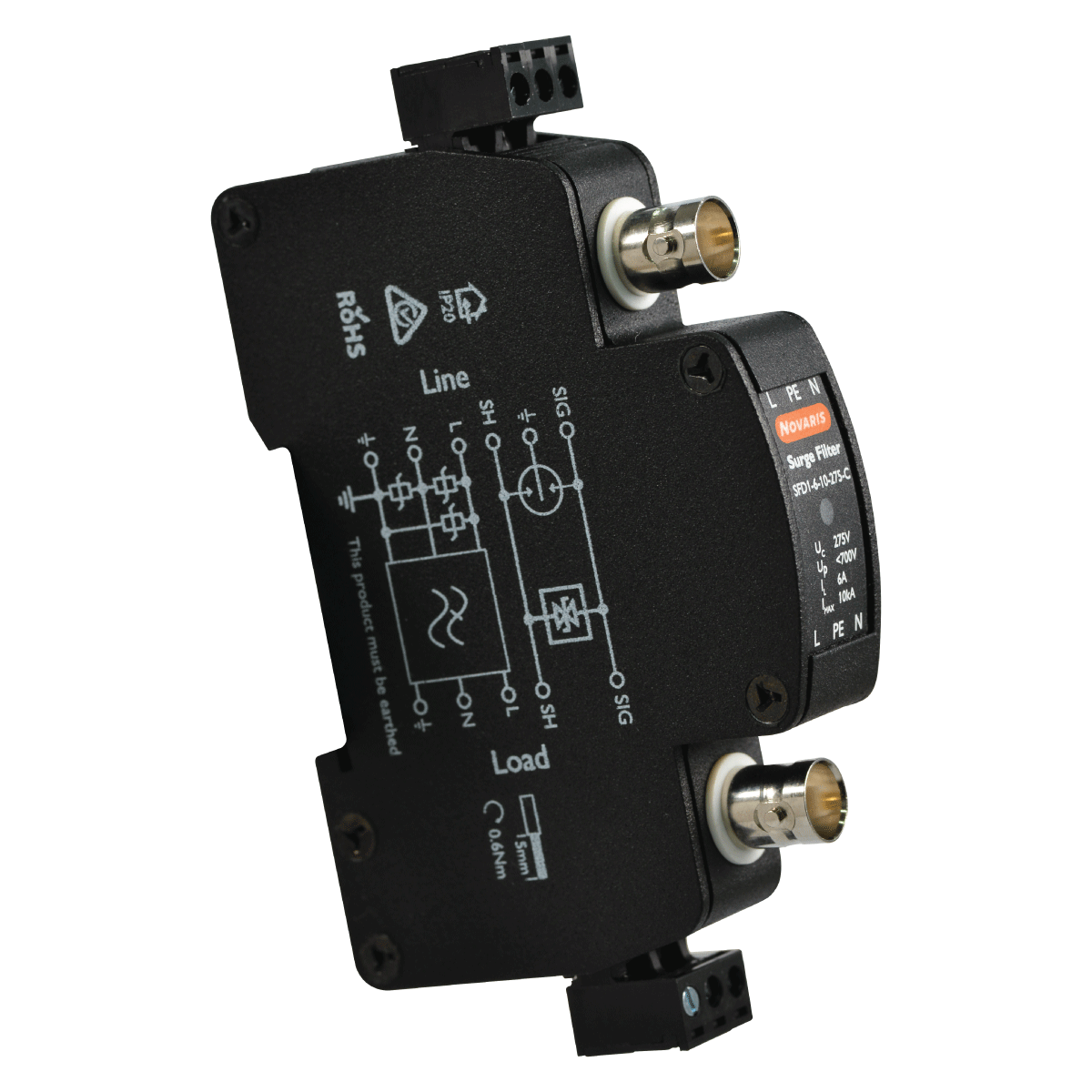

Coaxial + Power Combined Protectors

Signal | Network and CCTV
Product Line : SFD-C

Coaxial + Power Combined Protectors

For anologue video and power

Novaris protection for both Power and Signal is provided in a compact and economical DIN compliant package. They are ideal for security and CCTV camera protection.

  • LED indicator
  • 20 kA protection (signal)
  • 18mm combined product
  • Up to 10kA protection (power)
  • Multistage protection

Application Notes Download

SpecificationsSFD1-6-3-30-CSFD1-6-10-275-C
Power maximum continuous voltage (DC)U꜀40V380V
Power maximum continuous voltage (AC)U꜀30V275V
Power maximum discharge current (8/20μs)Iₘₐₓ3kA per line10 kA per line
Power impulse durabilityC2 8/20μs 2kA
Power maximum load current

IL

6 A
Power voltage protection level @ 3 kA (8/20 μs)Uₚ100V700V
Signal maximum continuous voltage (DC)U꜀8.2VDC
Signal maximum discharge current (8/20μs)20kA
Signal voltage protection level @ 1 kV/μsUₚ14V
Dimensions📐W 18mm x H 115mm x D 69mm
Weight📦160g
Product DatasheetPDFSFD1-6-3-30-CSFD1-6-10-275-C
