CCTV Coaxial Protectors

Signal | Network and CCTV
Product Line : CLB

CCTV Coaxial Protectors

For analogue video

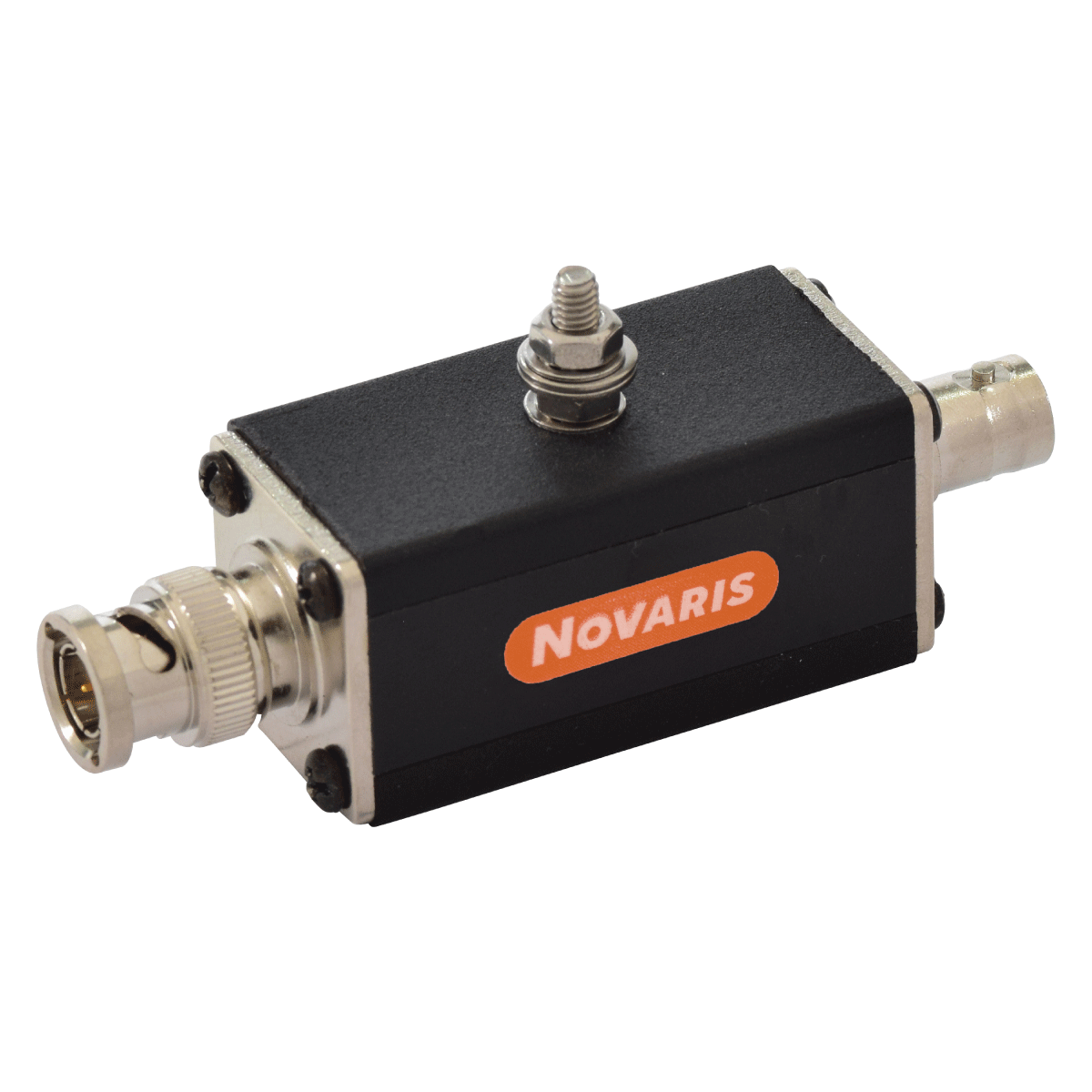

Novaris Coaxial CCTV Protectors are suited to the protection of security and CCTV systems. The 68V version has been designed for power over coax (PoC) applications.

  • Low VSWR
  • Supports PoC
  • 20 kA protection
  • Multistage protection

Application Notes Download

SpecificationsCLB-MFCLB-FFCLB-FM
Maximum continuous voltage (DC)U꜀68V
Maximum discharge current (8/20μs)Iₘₐₓ20kA
Maximum impulse current (10/350μs)Iᵢₘₚ2.5kA
Impulse durabilityC2 8/20μs 1kA
Maximum load current

IL

500mA
Voltage protection level @ 1 kV/μsUₚ65V
Line resistance1.5 Ω
Connector typeBNC
Connector orientationM / FF / FF / M
Dimensions📐W 88mm x H 26mm x D 26mm
Weight📦80g
