100kA Earth Clamps

Signal | Earth Clamps
Product Line : EC100

100kA Earth Clamps

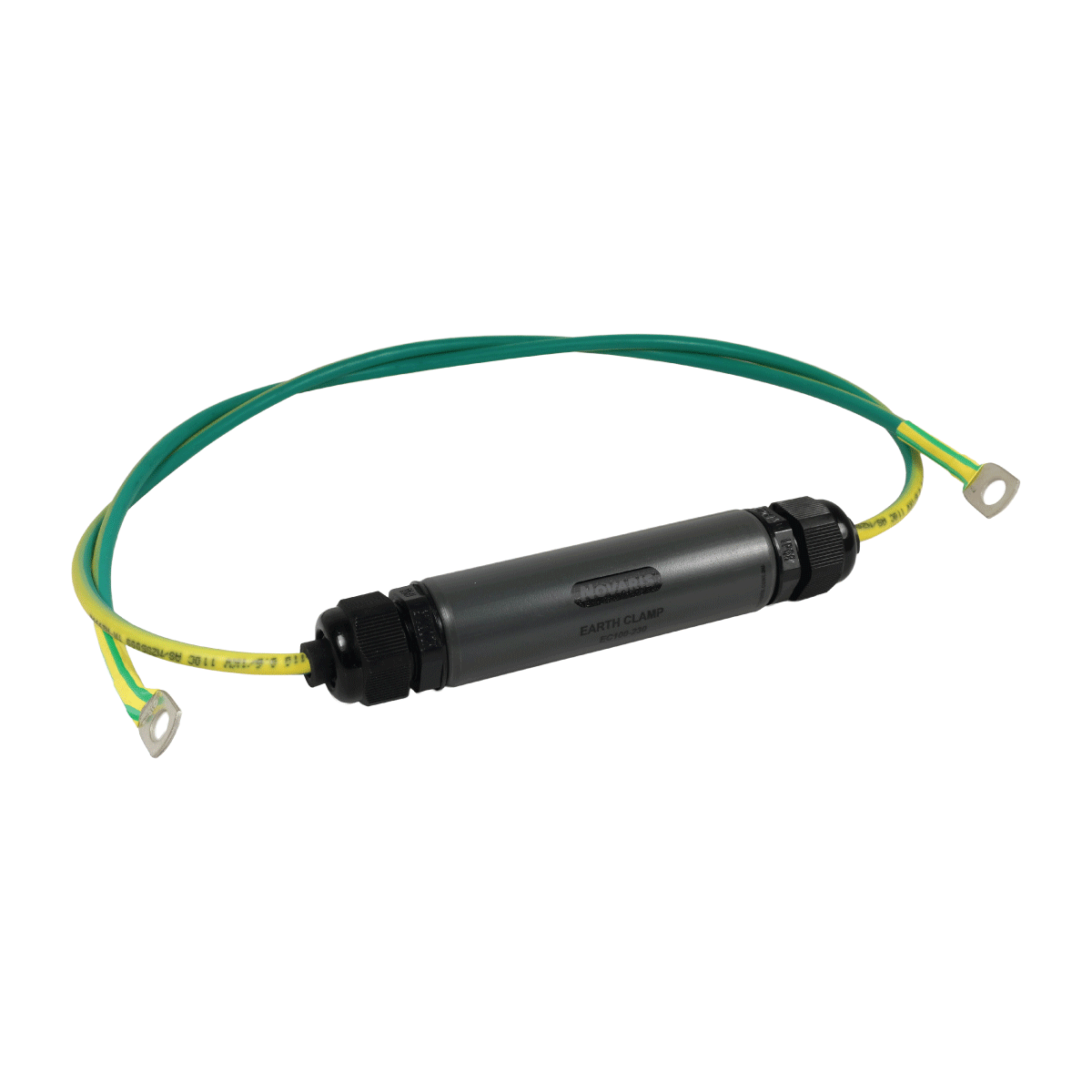

Transient earth clamp 100kA

Novaris EC Earth Clamps provide a means to electrically clamp different earthing systems during transient disturbances. Applications include computer rooms, defence installations and gas pipeline insulated joints.

  • Waterproof
  • Prevent potential differences
  • Bond earth isolated system
  • 500mm lead length (customizable)

Application Notes Download

SpecificationsEC100-230EC100-350EC100-500EC100-800
Maximum continuous voltage (DC)U꜀230V350V500V800V
Maximum continuous voltage (AC)U꜀160V245V350V565V
Maximum discharge current (8/20μs)Iₘₐₓ100kA
Maximum impulse current (10/350μs)Iᵢₘₚ20kA
Voltage protection level @ 5 kV 10/700μsUₚ900V1000V1200V1500V
Dimensions📐W 100mm x ⌀ 30mm
Weight📦247g
Product DatasheetPDFEC100-230EC100-350EC100-500EC100-800
Application Note
