Three Phase Surge Filters 630A - 2000A for LPZ0A/1

Power | Main Switchboards | Critical Installations >125A per Phase
Product Line : SFH3 (630A-2000A)

Three Phase Surge Filters 630A - 2000A for LPZ0A/1

For critical installations, sensitive electronics and computer equipment

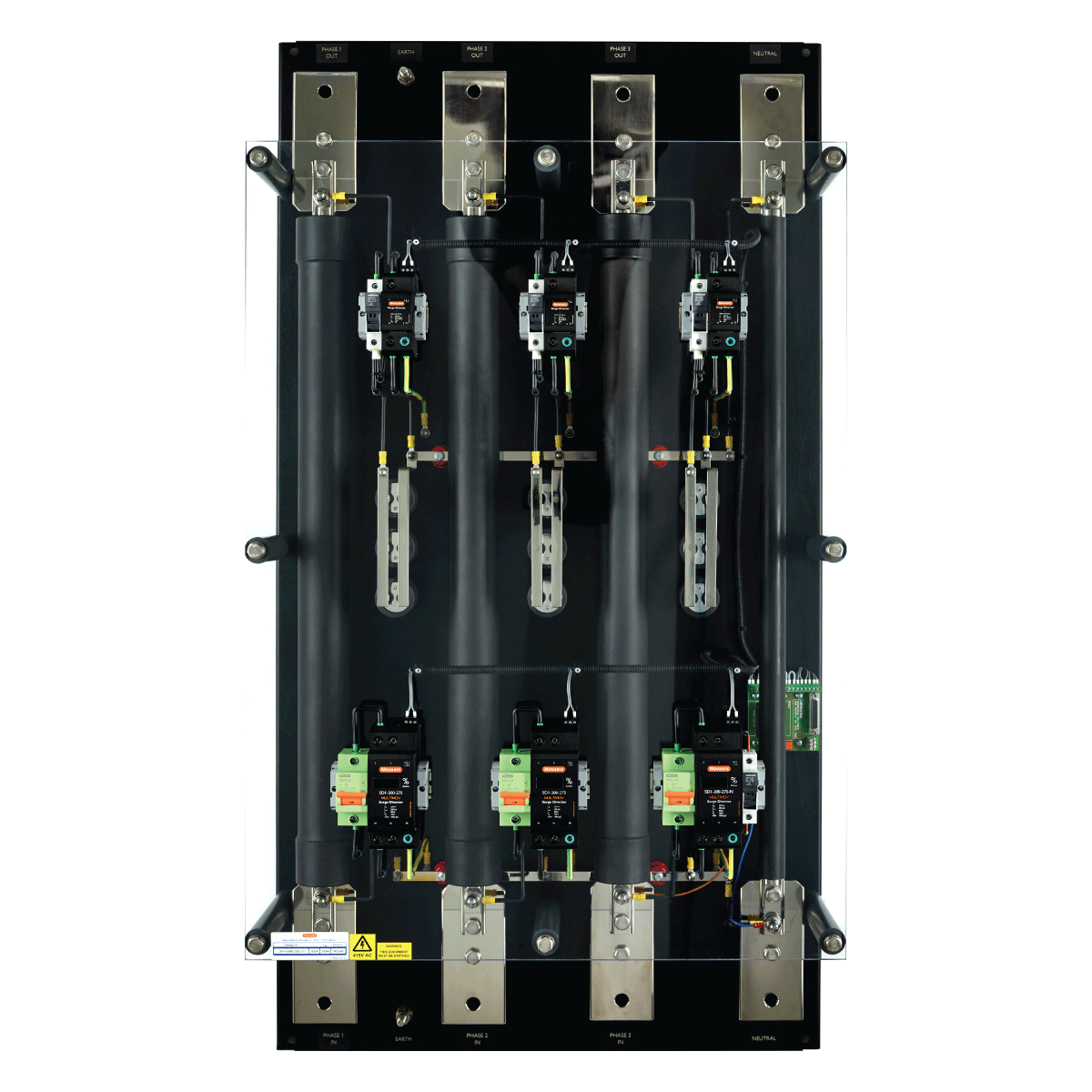

Novaris SFH3 three phase high current surge filters provide excellent main switchboard and sub switchboard protection for critical equipment up to 2000A per phase. The internal configuration has three stages of protection to ensure the lowest let-through voltage.

  • Type 1/2/3 ratings
  • LED power and health status indicators for each phase
  • Three stage protection configured for highly sensitive loads
  • Common and transverse mode filtering and protection
  • Active alarm with remote alarm connections

Application Notes Download

SpecificationsSFH3-630-200-275SFH3-800-200-275SFH3-1200-200-275SFH3-1600-200-275SFH3-2000-200-275
Nominal voltageUₒ230V/50Hz – 60Hz
Maximum continuous voltage ACU꜀275V/50Hz – 60Hz
Maximum load current

IL

630A800A1200A1600A2000A
L-N Maximum discharge current (8/20μs)Iₘₐₓ200kA200kA200kA200kA200kA
L-N Impulse current (10/350μs)Iᵢₘₚ25kA25kA25kA25kA25kA
L-N Nominal discharge current (15 x 8/20μs)Iₙ80kA80kA80kA80kA80kA
L-N Voltage protection level @ 3kA (8/20μs)Uₚ<360V<360V<360V<360V<360V
N-PE Impulse current (10/350μs)Iᵢₘₚ100kA100kA100kA100kA100kA
N-PE Nominal discharge current (15 x 8/20μs)Iₙ100kA100kA100kA100kA100kA
N-PE Voltage protection level @ 1kV/μsUₚ<1000V<1000V<1000V<1000V<1000V
Dimensions📐W 700mm X H 1300mm X D 315mm
Weight📦130kg150kg200kg250kg250kg
Product DatasheetPDFSFH3-630-200-275SFH3-800-200-275SFH3-1200-200-275SFH3-1600-200-275SFH3-2000-200-275
Application Note
