AS/NZ 15A Plug-In Surge Filter for LPZ1/2/3

Power | Appliance Protection | Plug in Filters (Australian)
Product Line : PP15A

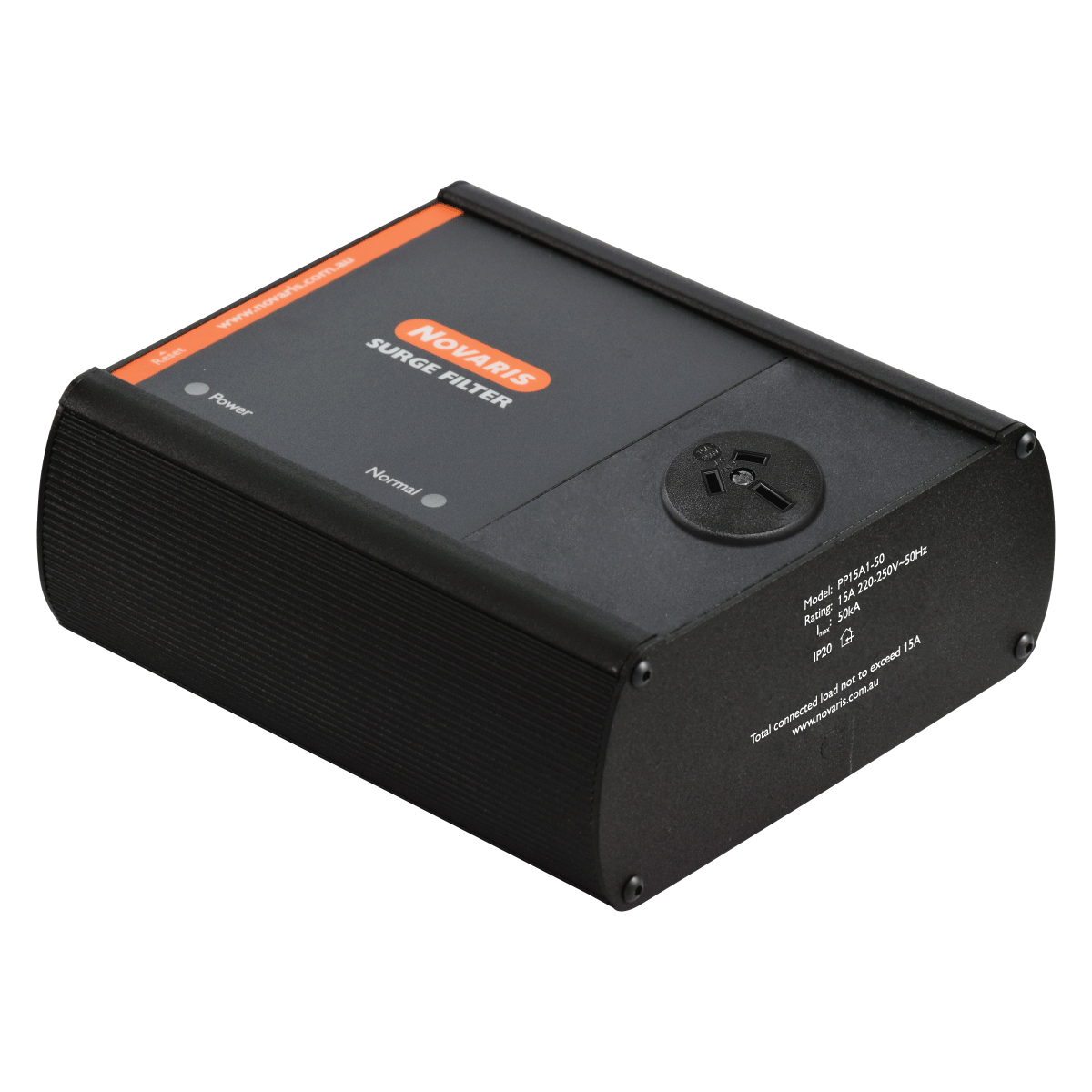

AS/NZ 15A Plug-In Surge Filter for LPZ1/2/3

For the protection of final circuit plug in appliances with AS/NZ 15A power outlets

Novaris AS/NZ 15A Plug-in Surge Filters plug into the Australian and New Zealand 15A type AU2-15P AS/NZS 3112 wall outlets. It provides the same clean and filtered power as the standard 10A plug-in units but with a full 15A continuous current rating. A single 15A AU2-15P outlet socket is provided to connect the equipment to be protected.

  • Type 1/2/3 ratings
  • Common and transverse mode filtering and protection
  • LED power and health status indications
  • Three stage protection configured for sensitive loads
  • Robust and compact metallic enclosure
  • Full 15A continuous rating

Application Notes Download

SpecificationsPP15A1-50
Nominal voltageUₒ230V / 50Hz – 60Hz
Maximum continuous voltage ACU꜀275V / 50Hz – 60Hz
Maximum load currentIₘₐₓ15A
L-N Maximum discharge current (8/20μs)Iᵢₘₚ50kA
L-N Impulse current (10/350μs)Iₙ6.25kA
L-N Nominal discharge current (15 x 8/20μs)Uₚ20kA
L-N Voltage protection level @ 3kA (8/20μs)Iₙ<700V
N-PE Nominal discharge current (15 x 8/20μs)Uₚ20kA
N-PE Voltage protection level @ 1kV/μsUₒ<800V
Number of outlets🔌1
Dimensions📐W 155mm x H 60mm x D 137mm
Weight📦1.5kg
Product DatasheetPDFPP15A1-50
